0.1~100A 1500rpm Rotary Slip Rings Small Electrical Slip Ring Anti Interference

Name: 01100A 1500rpm Rotary Slip Rings Small Electrical Slip Ring Anti Interference
Brand: Haurem
Price: 1 USD

China 0.1~100A 1500rpm Rotary Slip Rings Small Electrical Slip Ring Anti Interference wholesale

Brand Name : Haurem

Model Number : HRCZ85

Certification : CE RoHS

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pieces/month

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Advatage : High product precision

Channel : 1~56

Contact Resistance : ≤10mΩ ( 50rpm )

Electrical Noise : Max 30mΩ

Operating Humidity : 60%RH or higher

Rotating Speed : 200RPM

Series : Through hole slip ring

Temperature : -40℃~+80℃

Voltage Rating : 400VAC/VDC

High light : Anti-interference design and no noise in transimission

Contact Now

Special slip ring soluteion for industrial machinery-machining centers, current 0.1~100A 1500rpm or higher speed

HRCM85 series slip ring apply advanced fiber brush technology with high performance precious meteal, all of this keep our slip ring high lubricity,low friction, low contact wear and low noise. Besides, each brush bundle is made up of many brush wire with multi contact points in each circuit guaratee this kind of slip ring's better performance.

Electrical Spec.		Options
Rating voltage	380VAC	Flange for set up
Rating current	5A /Ring,10A /Ring	The wire exit direction,length is optional
Insulation resistance	1000MΩ@500VDC	Can combine more circuits:1-126Ring
Dielectric strength	600VDC@50HZ	Higher voltage and current capacity
Electrical noise	10mΩ@6VDC,50mA,5Rpm	The wire exit direction,length is optional
Mechanical Spec		Environment
Speed3	200Rpm	Working temperature	-40℃~+80℃
Torque	60N.cm	Mechanical vibration	MIL-SID-810E
Protection class	IP54--IP68	Humidity	10% to 90% RH
Contact material	Precious Metal	Materials	Lead Free,RoHS compliant
Lead Wire	12 color Teflon	CE Certified	YES
Life	50 million revolutions	The life of slip ring is up to revolutions, operation environment and temperature etc.

Model	Through Bore	Circuits	Rated Current	Rated Voltage	Outer diameter	Rated Speed
HRT015 series	15mm	1-6	2A/Ring or signal	Power:600VAC/VDC, Singal:240VAC	42mm	600Rpm
HRT012 series	12.7mm	1-36	5A,10A/Ring or signal	Power:600VAC/VDC, Singal:240VAC	56mm	600Rpm
HRT025 series	25.4mm	1-72	5A,10A,15A/Ring or signal	Power:600VAC/VDC, Singal:240VAC	86mm	300Rpm
HRT038 series	38.1mm	1-72	5A,10A,15A/Ring or signal	Power:600VAC/VDC, Singal:240VAC	99mm	300Rpm
HRT050 series	50mm	1-72	5A,10A,15A/Ring or signal	Power:600VAC/VDC, Singal:240VAC	120mm	300Rpm
HRT060 series	60mm	1-126	5A,10A,15A/Ring or signal	Power:600VAC/VDC, Singal:240VAC	135mm	300Rpm
HRT080 series	80mm	1-126	5A,10A,15A/Ring or signal	Power:600VAC/VDC, Singal:240VAC	160mm	200Rpm
HRT100 series	100mm	1-126	5A,10A,15A/Ring or signal	Power:600VAC/VDC, Singal:240VAC	185mm	200Rpm
HRT150 series	150mm	1-126	5A,10A,15A/Ring or signal	Power:600VAC/VDC, Singal:240VAC	260mm	200Rpm

0.1~100A 1500rpm Rotary Slip Rings Small Electrical Slip Ring Anti Interference

As a precious slip ring manufacturer for more than 10 years,Hunan Haurem Technology Co. Ltd. (HRM) owns a skilled management team and excellent design team already developed more than then thousands slip ring solutions, this keeps our technology advanced always around the world.

According to your special application requirements, our technical team will customize the slip ring with economically,high quality and reliability for you, please contact us at anytime.

Product Tags:

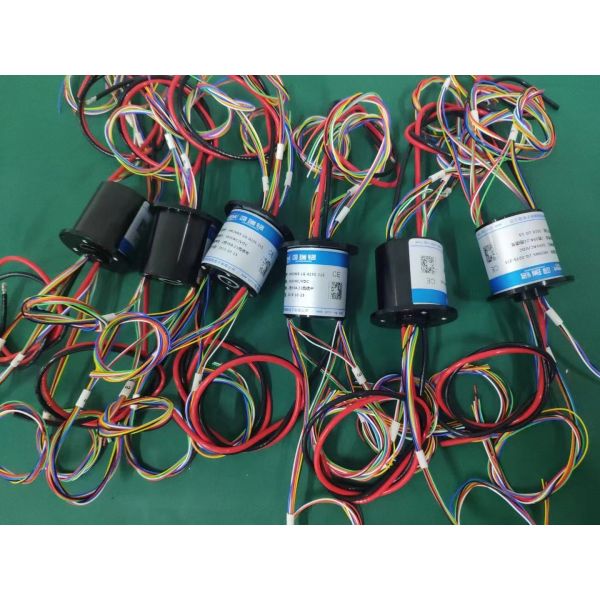

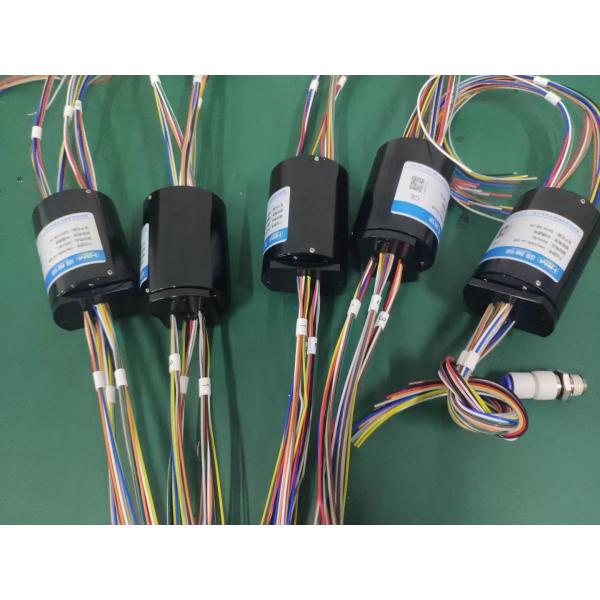

0.1~100A 1500rpm Rotary Slip Rings Small Electrical Slip Ring Anti Interference Images
